High Capacity side feeder for ZK133 Extruder machine

Description

Model NO.	CWJ132	Max Feeding (mm)	1000KG/H
Capacity(t/h)	300	Motor Power(kw)	15kw
Installation Slope	twin screw extruder	Screw speed	406rpm
Screw Design	twin screw	center distance	100.5mm
Certificate	CE TUV ISO Patent	Motor	SEW
Speed Regulation	Frequency Control	Screw Structure	meshing
Hopper	100L	Capacity	500-1000kg/h
Transport Package	export wooden box	Specification

Trademark	Joiner	Original	Dujiangyan, sichuan, China
HS Code	8477900000	Production Capacity	20/per month

​
Side feeders are used for the following reasons:
· Reduction of wear costs in the melting section of the main screw and barrels
· More gentle processing of fillers
· Increase in throughput
· Increase in quality through the enough fixing
· Lower the cost

Our side feeders features :
· Very durable thanks to its durable integral liner inside barrels
· The tightly intermeshing co-rotating segments with various pitch have an improved conveying behaviour and ensure the precision (long GF±5%,short GF±2%) and output (caco3 550Kg/h,GF 500Kg/h)
· More human centered design,ease of operation.for example the glass window,on the splined sleeve, flat screw head ,the adjustable support and the drawer for clean up the leak .Can designed based on user requests.

Side feeder parameters:

Side feeder parameters		CWJ25	CWJ35	CWJ45	CWJ58B	CWJ63	CWJ70A-	CWJ70B	CWJ95	CWJ132
Barrel diameter(mm)		Φ25.5	Φ35.5	Φ45.5	Φ58.5	Φ63.5	φ71	φ71	Φ96	Φ132
Screw(mm)		Φ25	Φ35.1	Φ45	Φ57.8	Φ62.8	φ70.1	φ69	Φ95	Φ131
Grove depth(mm)		6	7.5	9.7	10.5	15.5	17.5	17.5	24	31.5
Screw length(mm)		248	360	444	495	504	549	552	960	1116
L/D		9.75:1	10:1	9.75:1	8.5:1	8:1	8:1	7.5:1	10:1	8.5:1
Motor power		1.5kw	2.2KW	3KW	4-5.5KW	5.5KW	7.5KW	7.5KW	7.5KW	15KW
Reducer Radio		10:1	10:1	10:1	10:1	10:1	2.5:1	2.5:1	10:1	10:1
Screw speed(rpm)		245	300	300	307	307	600	600	245	406
center to center distance A(mm)		19.5	28	35.8	48	48	53.5	53.5	72	100.5
		X=73	80	113	125	125	154	154	198	275
		Y=60	70	78	106	106	106	106	133	175
		C=64	70	75	98	98	110	110	122	160
		φM=φ9(M8)	11 (M10)	13.5 (M12)	13.5 (M12)	13.5 (M12)	13.5 (M12)	13.5 (M12)	13.5 (M12)	17.5 (M16)
		φD=φ8H7	φ10H7	φ8H7	φ10H7	φ10H7	φ12H7	φ12H7	φ16H7	φ16H7
Size of cylinder feeding mouth(mm)		44*120	85*40	120*75	80*140	80*140	124.5*255	124.5*255	215*155	210*245
Feeding Capacity (kg/h)	GF(3-6mm)	~30	~70	~100	~300	~350	~420	~420	~600	~1000
	1250 talc powder 0.4~0.45kg/L	~30	~70	~100	~300	~360	~440	~440	~600	~1000
	3000 talc powder 0.3~0.35kg/L	~30	~30	~50	~150	~200	~270	~270	~300	~500
Suitable for extruder type		ZSK25	KY35	KY52	KY65/KY75	KY75	KY80	KY80	110	133

​​​​​FRQ

1. Q: Are you a factory or trading company?
----A: A factory
2. Q: Where is your factory located? How can I visit there?
-----A: Our factory is located in Chengdu, Sichuan Province, China,
1) You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport;
All our clients, from domestic or abroad, are warmly welcome to visit us!
3.Q: What makes you different with others?
----A: 1) Our Excellent Service
For a quick, no hassle quote just send email to us
We promise to reply with a price within 24 hours - sometimes even within the hour.

2) Our quick manufacturing time
For Normal orders, we will promise to produce within 30 working days.
As a manufacturer, we can ensure the delivery time according to the formal contract.

4.Q: How about the delivery time?
----A: This depends on the product. Typically standard products are delivered within 30 days.
5.Q: May I know the status of my order?
----A: Yes .We will send you information and photos at different production stage of your order. You will get the latest information in time.

Contact Information

Ms Jessica Zhang

Email:86 18380438354

What'sup: +86 18380438354

Mail: jessica.zhang@jiangningjx.com

Parallel Extruder Side Feeder

Petrochemical Factory Extruder Side Feeder

15kw Twin Screw Side Feeder

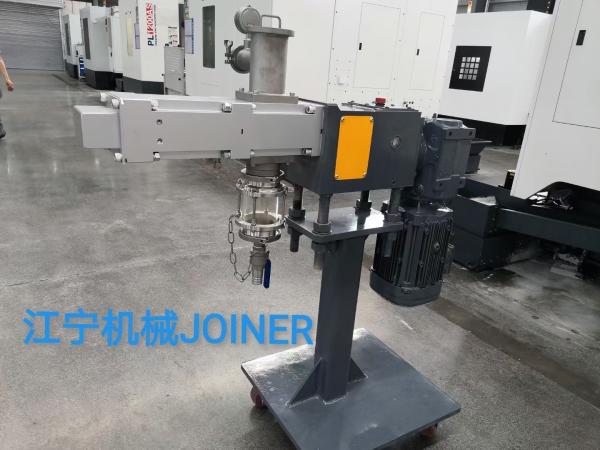

Parallel Twin Screw Extruder Side Feeder For Petrochemical Factory Images
