Precision CNC Machining Accuracy Extruder Parts Rectangular Openings Combine Barrel

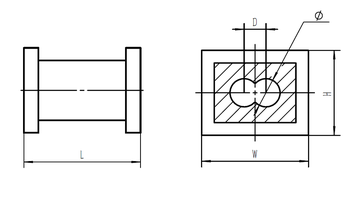

1. Standard Barrel Parameter Table
| Standard Barrel Parameter Table (selection table) |
| Model | Size(mm) W.H.L | Hole Diameter(mm) | Center Distance(mm) |
| JN-20 | 115.105.132 | Φ23 | 18.4 |
| JN-30 | 135.115.120 | Φ30.6 | 26 |
| JN-35 | 140.120.140 | Φ36 | 30 |
| JN-36 | 160.140.150 | Φ36 | 30 |
| JN-40 | 175.145.160 | Φ41.6 | 34.5 |
| JN-50 | 190.150.190 | Φ51 | 42 |
| JN-52 | 200.155.210 | Φ52 | 43 |
| JN-53 | 210.160.220 | Φ53.3 | 48 |
| JN-58 | 220.175.240 | Φ58 | 48 |
| JN-60 | 210.170.240 | Φ60 | 52 |
| JN-65 | 210.170.240 | Φ63 | 52 |
| JN-75 | 260.200.290 | Φ71.8 | 60 |
| JN-85 | 280.215.320 | Φ81.9 | 67.8 |
| JN-92 | 310.240.360 | Φ92 | 78 |
| JN-95 | 310.240.360 | Φ94 | 78 |
| JN-110 | 330.240.420 | Φ109 | 91.5 |
| JN-125 | 390.290.500 | Φ125 | 98 |
| JN-135 | 370.300.410 | Φ134 | 110 |
2. Co-rotating twin screw barrels for:
| Keya | KOBE | Buhler |
| Berstorff | Theysohn | Toshiba |
| Buss | Maris | Labtech |
| CPM | Leistritz | APV |
| JSW | Lantai | Etc. |
3. Rang of work: Diameter of 15.6mm-400mm
We manufacture barrels for co-rotating twin screw extruders ranging from 15.6 mm to 400 mm and over. Our manufacturing specializes in barrels for twin screw extruders and is optimized for flexible order handling.
4. Professional monitoring equipment guarantee
We have three coordinate detectors, two dimensional image measuring instruments, a metallographic analyzer, an ultrasonic flaw detector, an element analyzer and more than 10 kinds of advanced detection equipment, which guarantees its quality stability!
5. Packing Details:
According to your order quantities and products sizes to pack:
1. Rust-proof oil processing,
2. Oiled paper packages,
3. Bubble wrap package,
4. Special foam packaging,
5. Packing,
6. Sealing.

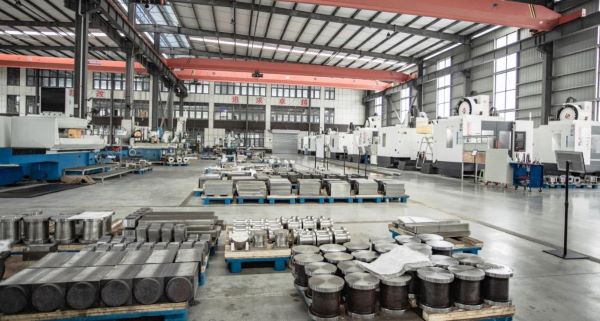

6. Our company:
Joiner Machinery Co., Ltd. is a professional research and manufacturing enterprise working in the extrusion field. The name JOINER stands for join in extruder and JOINER is your best partner in extrusion technology. With nearly 20 years of research and development and production experience in the components of twin-screw extruder, JOINER supply screw elements, barrels, shafts, side feeders and customized solutions for extruder makers and users home and abroad.
JOINER has been certified to ISO9001 and is recognized as a top supplier by renowned customers.Through close working relationships with our customers we have been able to fulfill their different requirements. Flexibility enables us to design and manufacture standard and bespoke components for unique applications.
7. Service Network Assurance
We have a professional sales team who can quickly understand the real needs of customers, and put forward reasonable solutions for them. The company not only offers supportive services for both domestic and foreign brands, but also provides retail services to outstanding end customers in the industry. Now Joiner products are exported to more than 30 countries including countries such as Europe and America.
8. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Chengdu, Sichuan Province, China, 1) You can fly to Chengdu Airport directly. We will pick you up when you arrive in the airport; All our clients, from domestic or abroad, are warmly welcome to visit us.
Q: What makes you different with others?
A: 1) Our Excellent Service For a quick, no hassle quote just send email to us We promise to reply with a price within 24 hours - sometimes even within the hour. If you need an advice, just call our export office at +86 028 87226313, we will answer your questions immediately.
2) Our quick manufacturing time For Normal orders, we will promise to produce within 30 working days. As a manufacturer, we can ensure the delivery time according to the formal contract.
Q: What is your terms of payment ? A: 1) T/T 2) L/C;
If you have another question, pls feel free to contact us.
9. Types of barrel we produce:
